Fiberhome AN5506-04-FG GPON ONU 4 GE 2 POTS Wi-Fi

AN5506-04-FG is one of remote ONU in Fiberhome FTTX system. It can provide 1 port of GPON uplink to docking with OLT in local. And also provide 4 ports of 10/100M Base-TX, 2 ports of RJ11 and Wi-Fi. AN5506-04-FG must connect to AN5x16 Series OLT in GPON system. The entire system can provide data, VoIP and video for subscribers.

Quick Specification

Table 1 shows the Quick Specification.

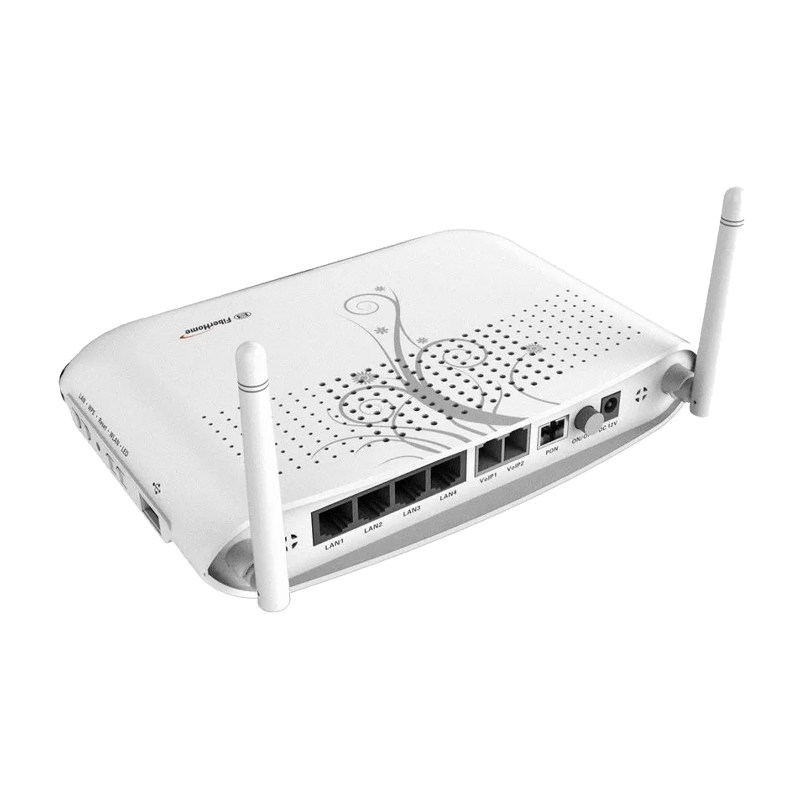

Figure 1 shows the appearance of AN5506-04-FG.

Product Details

Features

● Provide Ethernet/Wi-Fi/USB/VoIP interface to match different access request from users.

● Build in Wi-Fi function, comply to 802.11b/g/n.

● High Service discovers and control function. It can identify different kind of service base on equipment and provide prior control to end user.

● 4 LAN (10/100/1000M BASE-TX) port, Wi-Fi and 2 RJ11 ports, support max 4 SSID (hide), Support WEP and WPA/WPA2 security protocols.

● Support PPPoE+; STP/RSTP

● Support IEEE802.1Q VLAN; QoS

● Support IGMP Snooping, IGMP Proxy

● Call protocol: SIP (IMS compatible), seamless compatible with all popular call agent

● Voice coding: ITU-T G.711/G.723.1(5.3K/6.3Kbit/s)/G.729, auto-negotiate with call agent.
